Description
Product Description

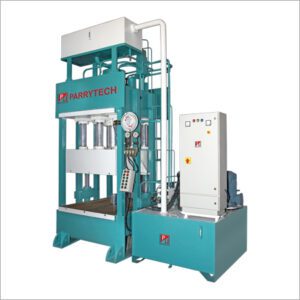

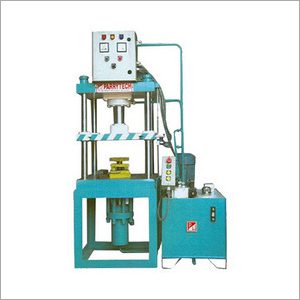

We design & manufacture high-efficient hydraulic deep drawing press. It is designed to be rigid, space saving and productive. The machine has good hydraulics, control and electronic safety. It has been specially designed for consistent pressure and high power. With its proven technology, the press machine improves both quality and productivity. Hydraulic deep drawing press is used for the manufacturing of steel utensils, automobile components etc. There is high degree of finish, speed & precision. We deliver presses for varied deep drawing applications. Also, we meet your custom design requirements effectively.
| Model No. | Cap. (TON) | Platen Size (mm) | Day Light Gap (mm) | Main Cyl. Stroke (mm) | Die Cushion Cap. (TON) | Die Cushion Cyl. Stroke (mm) | Die Cushion Table (mm) | Motor (H.P.) |
|---|---|---|---|---|---|---|---|---|
| PDCP-100 | 100 | 500 x 500 | 500 | 300 | 40 | 250 | 250 x 250 | 15 |
| PDCP-150 | 150 | 600 x 600 | 600 | 400 | 60 | 250 | 300 x 300 | 20 |
| PDCP-200 | 200 | 700 x 700 | 700 | 425 | 80 | 250 | 350 x 350 | 25 |
| PDCP-250 | 250 | 750 x 750 | 750 | 450 | 100 | 300 | 400 x 400 | 30 |
| PDCP-300 | 300 | 800 x 800 | 800 | 500 | 120 | 300 | 500 x 500 | 35 |
| PDCP-400 | 400 | 1000 x 1000 | 800 | 500 | 160 | 300 | 550 x 550 | 40 |
| PDCP-500 | 500 | 1200 x 1200 | 800 | 500 | 200 | 350 | 600 x 600 | 50 |
| PDCP-600 | 600 | 1300 x 1300 | 900 | 600 | 240 | 400 | 750 x 750 | 60 |
| PDCP-800 | 800 | 1500 x 1500 | 1000 | 600 | 320 | 400 | 850 x 850 | 60 |
| PDCP-1000 | 1000 | 1800 x 1800 | 1200 | 750 | 400 | 450 | 1000 x 1000 | 75 |
| PDCP-1200 | 1200 | 2000 x 2000 | 1200 | 750 | 480 | 500 | 1200 x 1200 | 125 |
Note :
- Parrytech Hydraulic Deep Draw Press Capacity Available Upto 4000 Ton
- Heavy Duty Presses Will Be Available
- The Presses Will Be Manufactured As Per Customer Requirement
