Description
We have been offering advanced technology range of Hydraulic Rubber Moulding Press for different application in varied sectors such as thermoset plastic, bakelite, thin metal, foam, resin, building materials forming, etc. The Hydraulic Rubber Moulding Press is designed with PLC controller, auto control as well as manual control features to ensure maximum efficacy with high accuracy. The array is designed with automatic exhaust; automatic closing mould and curing calculate time. With automatic opening mould and delay alarm, the product provides the best performance. Every layer is equipped with high quality mould slide rail with control the mould in or out options.

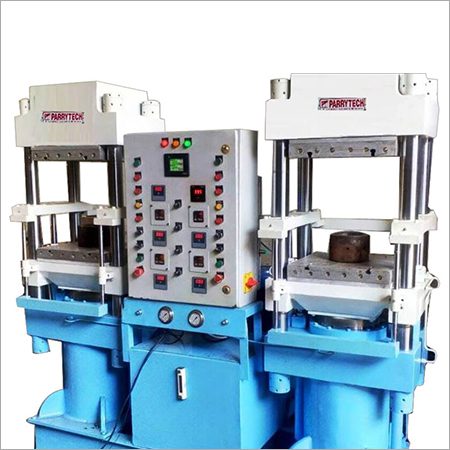

Features of Double Station Hydraulic Rubber Moulding Press :
- Available in simple design and high efficiency for maximum client satisfaction
- Designed with adjusted module, pressure compensation function and oil-way configuration.
- Time as well as heating temperature can be easily adjusted as per the need.
- Loaded with manual as well as semi-auto operations
Technical Specification Of Hydraulic Rubber Moulding Press :
| Model | Capacity (TON) | Ram Size (MM) | Daylight (MM) | Stroke Length (MM) | Platen / Bed Size (MM) | Electric Motor (HP) | Working Pressure (BAR) |
|---|---|---|---|---|---|---|---|
| PRM – 50 | 50 | 120 | 250 | 200 | 300 x 300 | 5 | 210 |
| PRM – 100 | 100 | 180 | 350 | 250 | 400 x 300 | 7.5 | 210 |
| PRM – 150 | 150 | 250 | 400 | 300 | 500 x 400 | 7.5 | 210 |
| PRM – 200 | 200 | 275 | 450 | 350 | 600 x 500 | 10 | 210 |
| PRM – 250 | 250 | 350 | 450 | 350 | 700 x 600 | 15 | 210 |
| PRM – 300 | 300 | 350 | 500 | 400 | 800 x 600 | 20 | 210 |
| PRM – 400 | 400 | 400 | 550 | 450 | 800 x 650 | 20 | 210 |
| PRM – 500 | 500 | 400 | 600 | 500 | 900 x 700 | 20 | 210 |
| PRM – 600 | 600 | 500 | 650 | 500 | 900 x 800 | 30 | 210 |
| PRM – 800 | 800 | 650 | 750 | 600 | 1000 x 800 | 40 | 210 |
| PRM – 1000 | 1000 | 800 | 850 | 550 | 1200 x 1000 | 50 | 210 |
NOTE :
- Parrytech Hydraulic Rubber Moulding Press Available Upto 4000 Ton
- Heavy Duty Presses Will Be Available
- The Presses Will Be Manufactured As Per Customer Requirement
